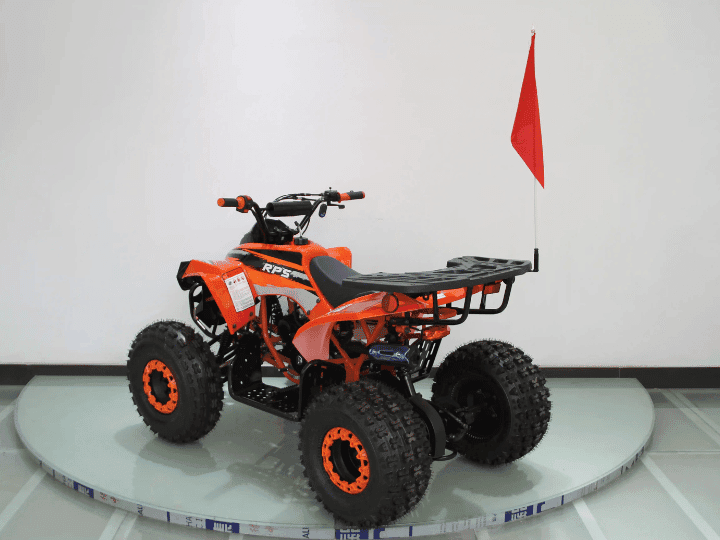

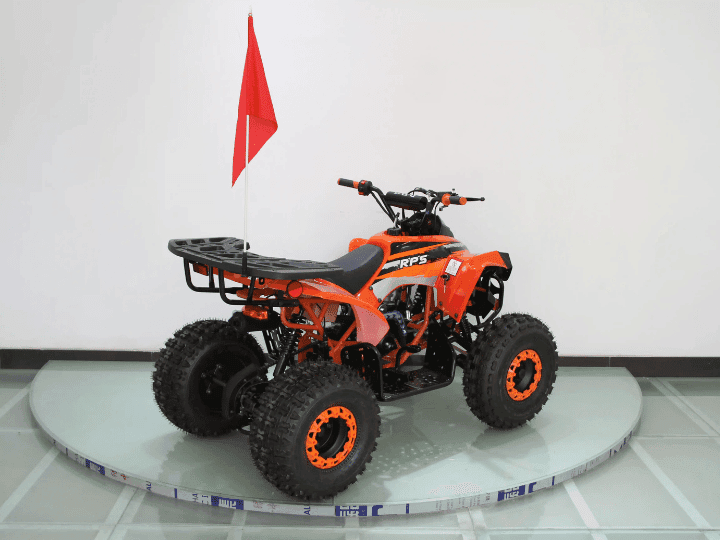

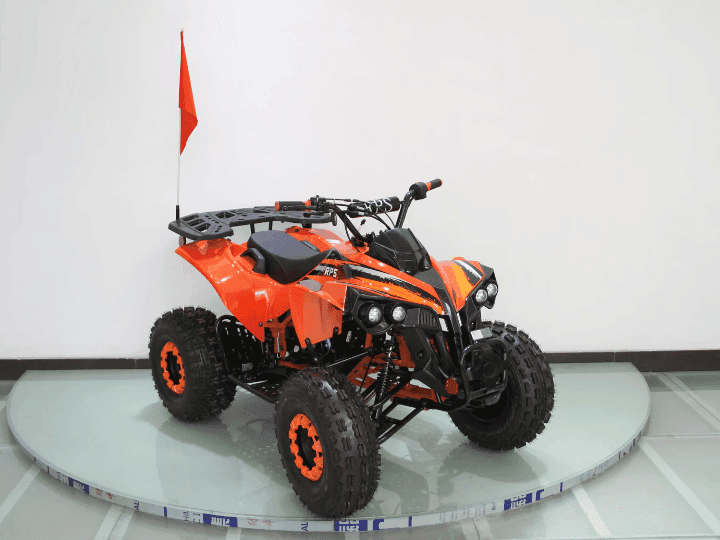

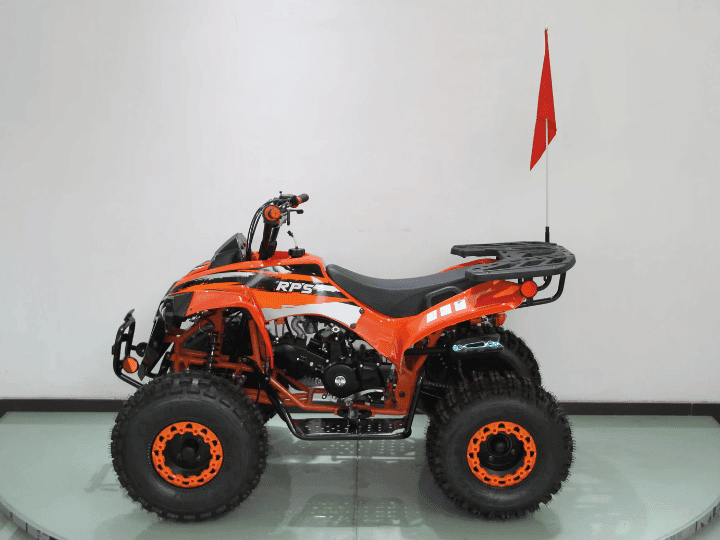

RPS 125 OUTLAND

Engine & Performance

• Engine Type: 124cc, 4-Stroke, Single-Cylinder
• Maximum Power: 6.57 HP @ 8,000 RPM
• Maximum Torque: 5.17 ft-lb @ 5,500 RPM
• Bore × Stroke: 52 mm × 55.5 mm
• Compression Ratio: 9.0:1
• Cooling System: Air-Cooled
• Transmission: Fully Automatic with Reverse
• Starting System: Electric Start
• Ignition System: CDI
• Final Drive: Chain Drive
• Top Speed: Limited to 15 MPH (Y-10+ ATV)
• Fuel Economy: Up to 87.77 MPG
• Fuel Tank Capacity: 0.58 Gallons (2.2 L)
• Battery: 12V / 5Ah

Chassis, Suspension & Braking

• Front Suspension: Dual A-Arm with Dual Shock Absorbers
• Rear Suspension: Swing Arm with Central Mono-Shock
• Front Brake: Drum Brake
• Rear Brake: Hydraulic Disc Brake
• Front Tire: 19 × 7-8
• Rear Tire: 18 × 9.5-8

Dimensions & Weight

• Overall Length: 62.21 in (158 cm)
• Overall Width: 33.46 in (85 cm)
• Overall Height: 37.4 in (95 cm)
• Wheelbase: 39.37 in (100 cm)
• Seat Height: 27.56 in (70 cm)
• Ground Clearance: 5.9 in (15 cm)

Weight Specifications

• Net Weight: 246.96 lbs (112 kg)
• Gross Weight: 297.68 lbs (135 kg)
• Maximum Load Capacity: 187 lbs (85 kg)

Shipping Dimensions

• Carton Size (L × W × H): 56.7 × 33.07 × 24.22 in (144 × 84 × 62 cm)

Available Colors

• Red / Red
• Blue / Blue
• Black / Red
• Black / Blue
• Black / Green
• Green / Green
• Orange / Orange
